First, the customer name:
Shanxi New Energy Automobile Co., Ltd.
Second, the project profile:
1. Scope of supply: All conveyor lines, process hangers and lighting, KPK, process secondary pipelines, and system-wide integration, including design, production, installation and commissioning.
2. Project introduction:

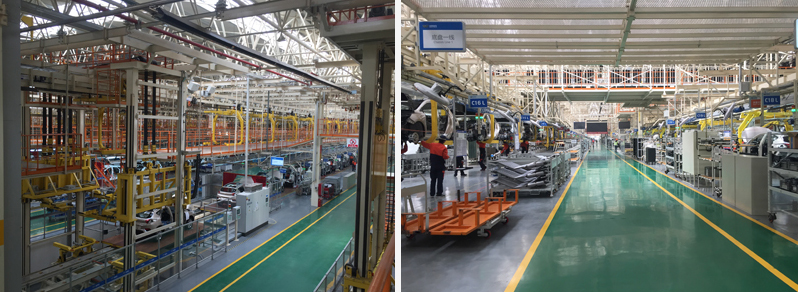

Jinzhong Geely is the general contracting project of our company, including PBS line, interior assembly line, chassis line, final assembly line, door line, OK line, rain line, commodity inspection line, engine distribution, etc., including craft hangers and lighting. , KPK, process secondary pipeline, full workshop power supply system, system-wide integration. The conveyor line is equipped with a CS control system. At the same time, an information management system is configured. Model information control overall function: PBS line body information is managed by UHF electronic tags. To ensure reliable operation of the system, there is a 12-inch touch screen at the switch. Manual information can also be entered. The wireless bar code scanner can be used for scanning. Take the vehicle process card barcode. The overall configuration includes an ANDON system, an AVI system, and the like.
The main parameters:
Production capacity: 140,000
Product: Production line through body size: L × W × H: 4680 × 1790 × 1482 (mm)
The workshop production line passes through the body-in-white weight: 500Kg/set.
Production program: 32JPH, 2 shifts; 300 days / year
Production mode: continuous through production line
Conveyor line form: belt sled, air friction, large skateboard, plate chain, plastic strip, roller conveyor, CPC, etc.
