First, the customer name:

Handeng Automobile Co., Ltd.

Second, the project profile:

1. Scope of supply: PBS line friction skid, interior assembly large skateboard line, chassis friction line, final assembly line, door friction line, OK line, rain line, commodity inspection line, engine sub-assembly, etc., including craft hanger And lighting, KPK, process secondary pipeline, system-wide integration

2. Project introduction:

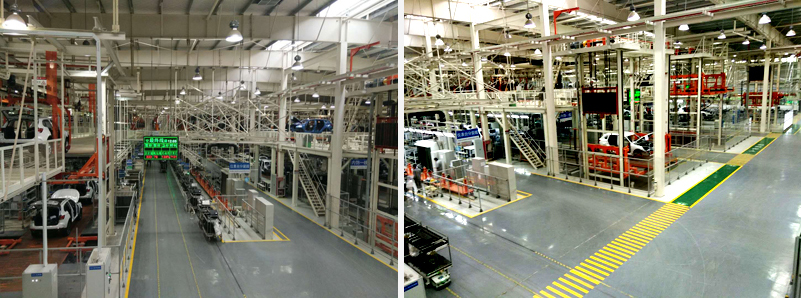

The Hanting Phase I final assembly conveyor line completes the assembly task of the whole vehicle. The workshop undertakes the full-process operation task of assembling large and medium-sized SUV/electric vehicle/hybrid SUV from the parts into the whole vehicle and passing the test and testing. The scope of the project includes: PBS line friction skid, interior assembly large skate line, chassis friction line, final assembly line, door friction line, OK line, rain line, commodity inspection line, engine sub-assembly, etc., including craft hangers and Lighting, KPK, process secondary pipeline, full system integration, conveyor line configuration CS control system, AVI, ANDON system. The overall function of vehicle model information control: body information is managed, dispatched, routed, and material pulled by high-frequency electronic tags.

The main parameters:

Production capacity: 100,000 units

Product: The production line passes the maximum body size: 4900mm (L) ¡Á 2000mm (W) ¡Á 1800mm (H)

The workshop production line passes the maximum body-in-white weight: 600Kg/set.

Production program: 30JPH, 2 shifts; 300 days / year

Production mode: continuous through production line

Conveyor line form: friction skid, air friction, large skateboard, plate chain, stainless steel strip, roller conveyor, etc.
